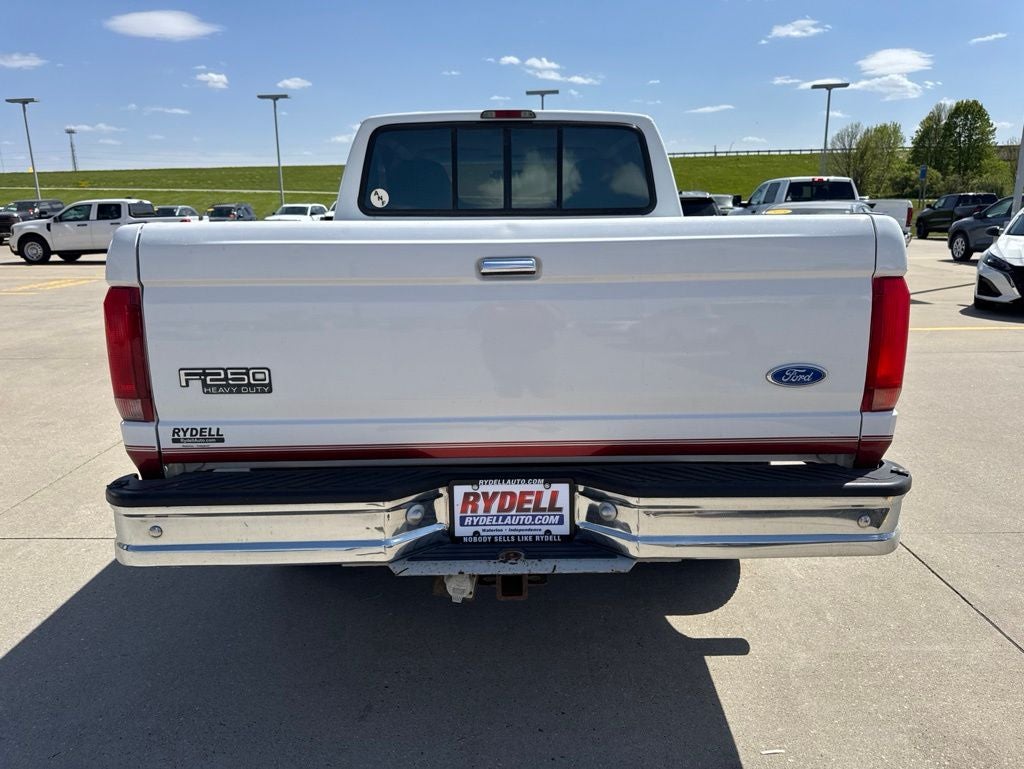

• Chrome front bumper
• Bright windshield molding

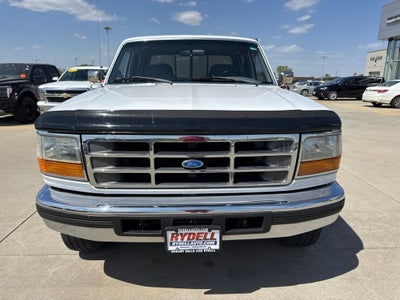

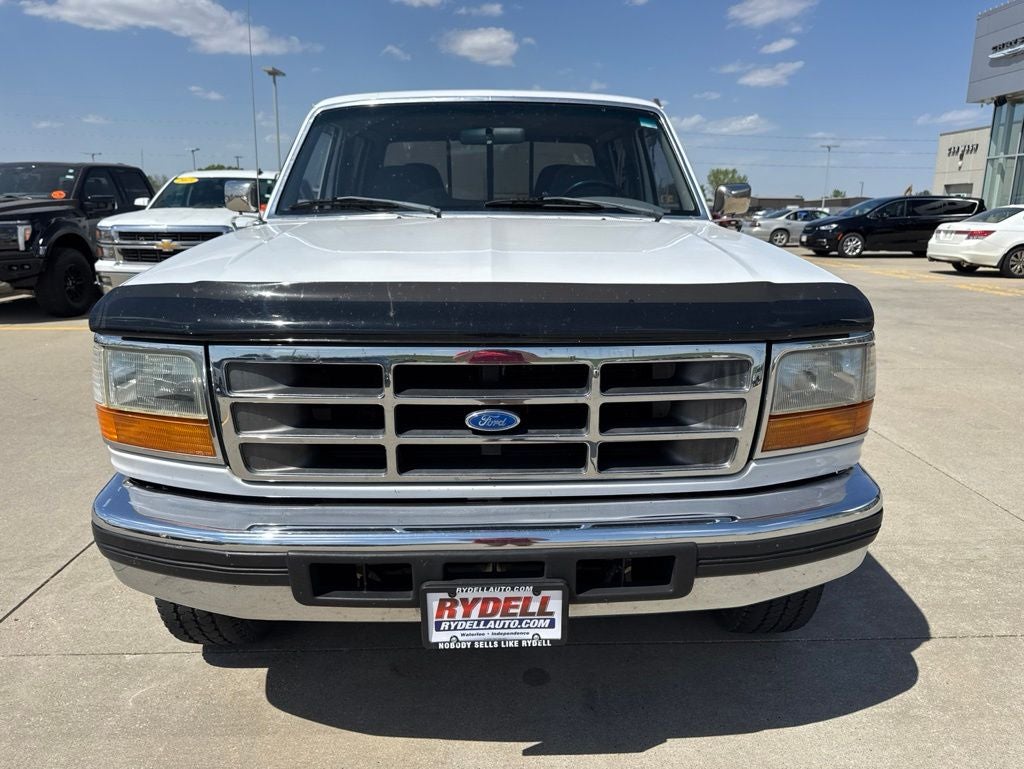

• Argent grille
• Aero halogen headlights w/impact-resistant lenses
• Wraparound front parking/turn signal lights
• Wraparound tail lights
• High-mounted stop light w/cargo box light
• Dual black manual mirrors
• Tinted glass
• Interval wipers
• Removable tailgate w/bright release handle

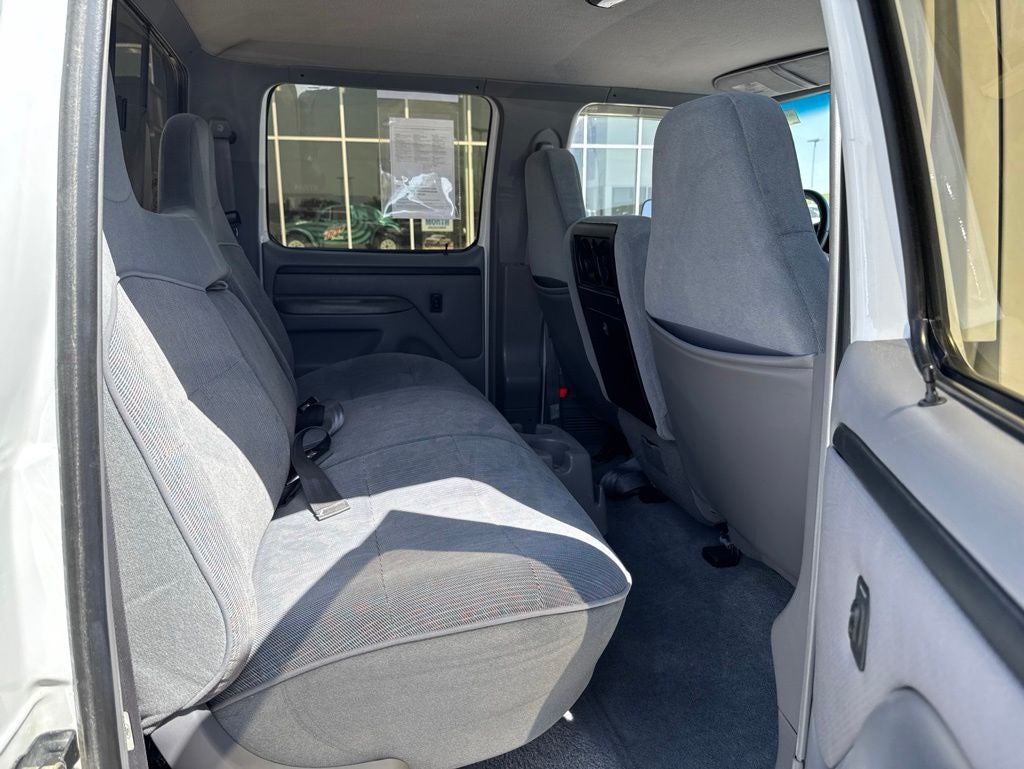

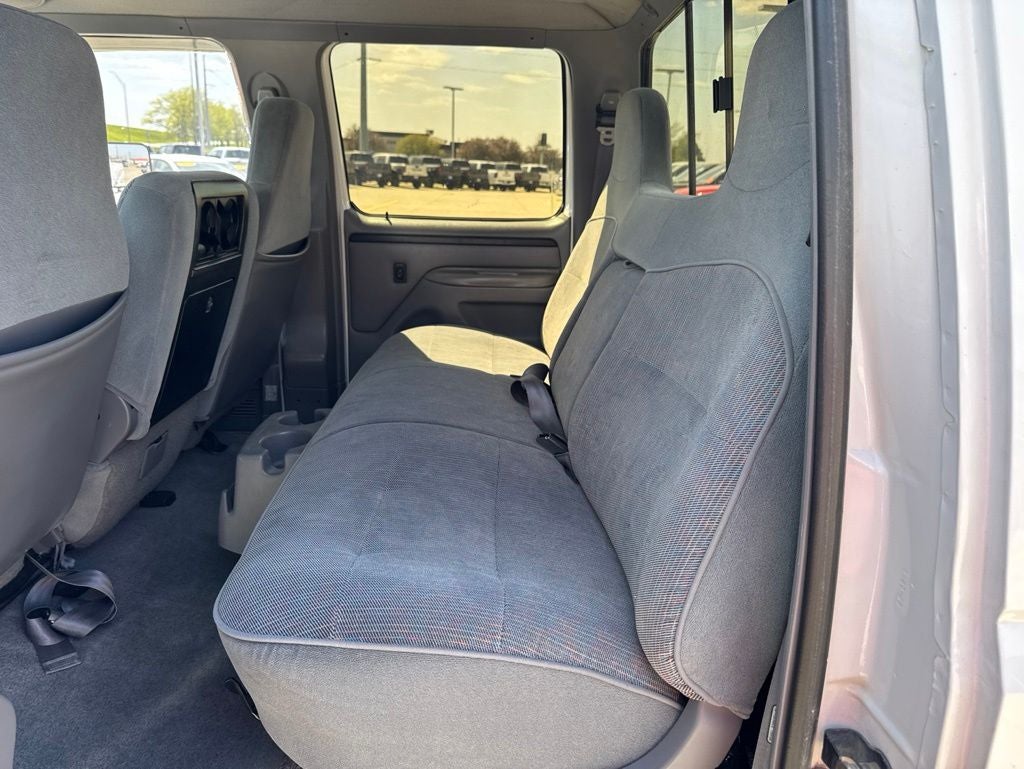

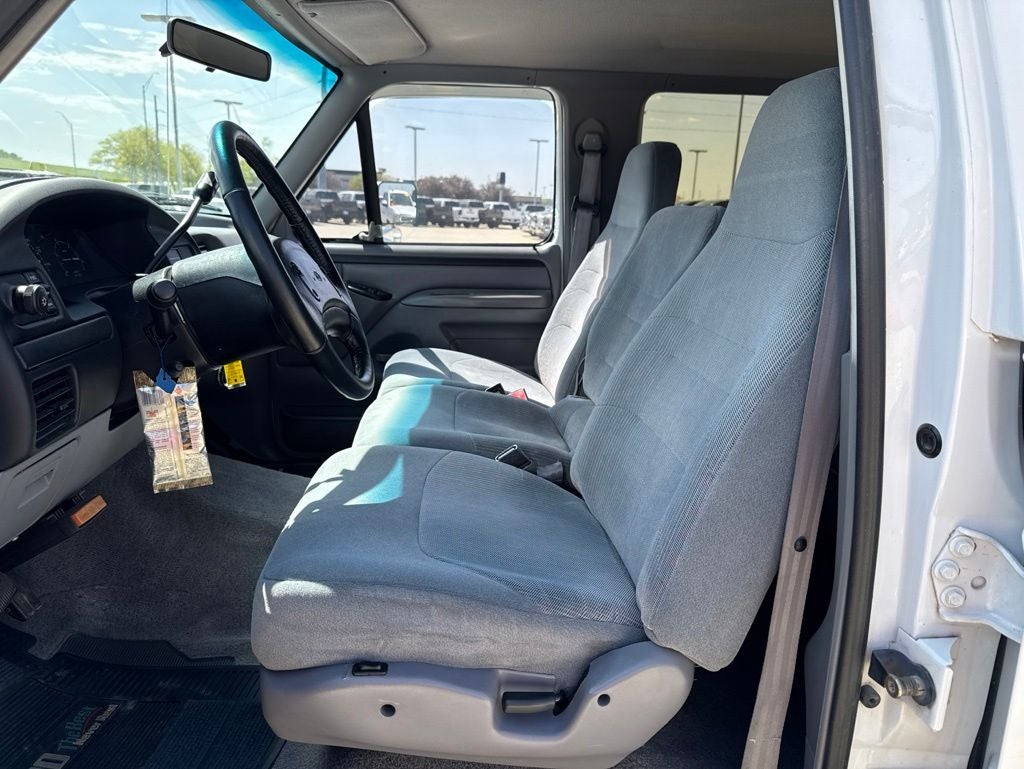

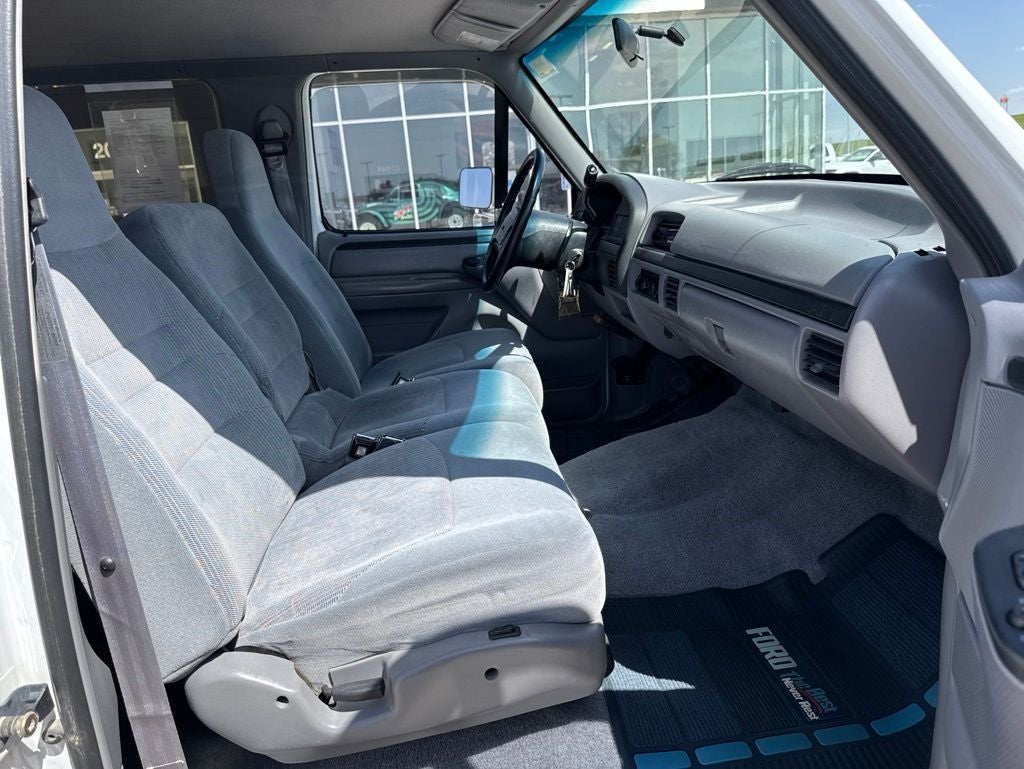

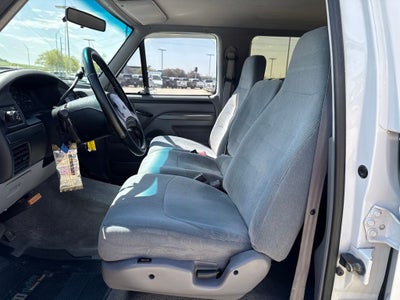

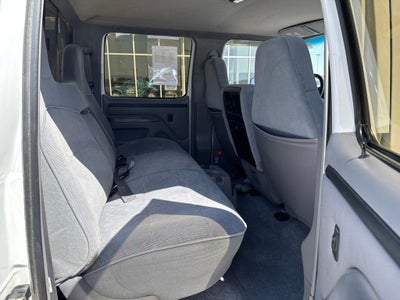

• Front/rear vinyl bench seats w/adjustable headrests for outboard seating
• Black rubber floor mat
• Black scuff plates

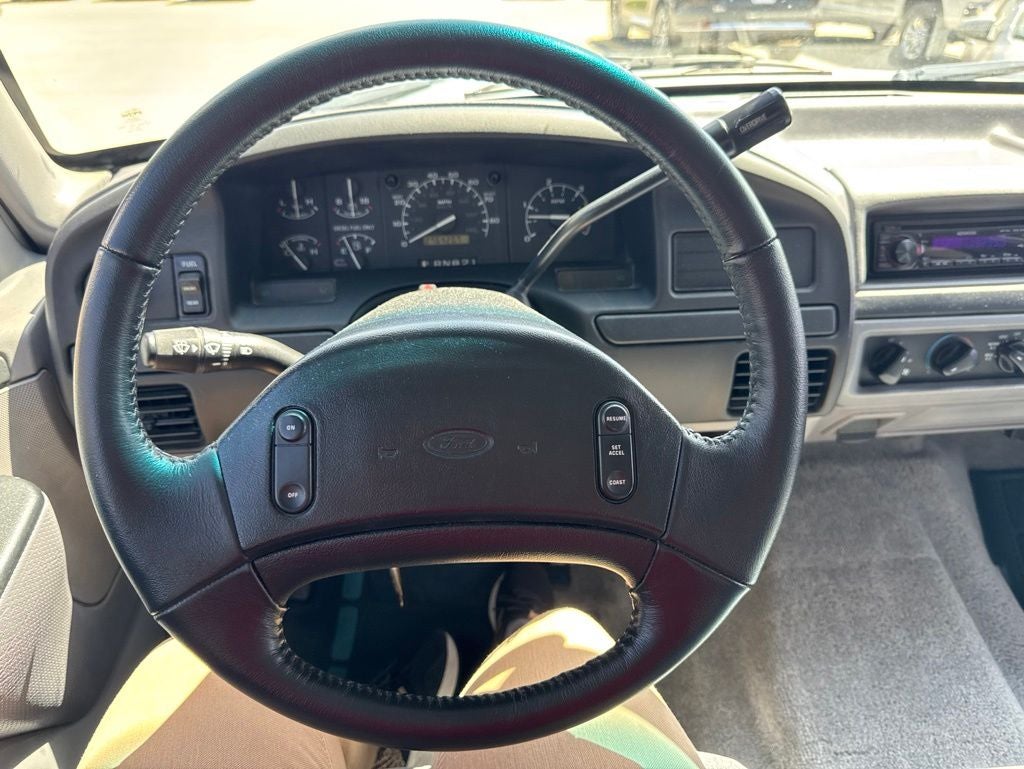

• Black vinyl steering wheel

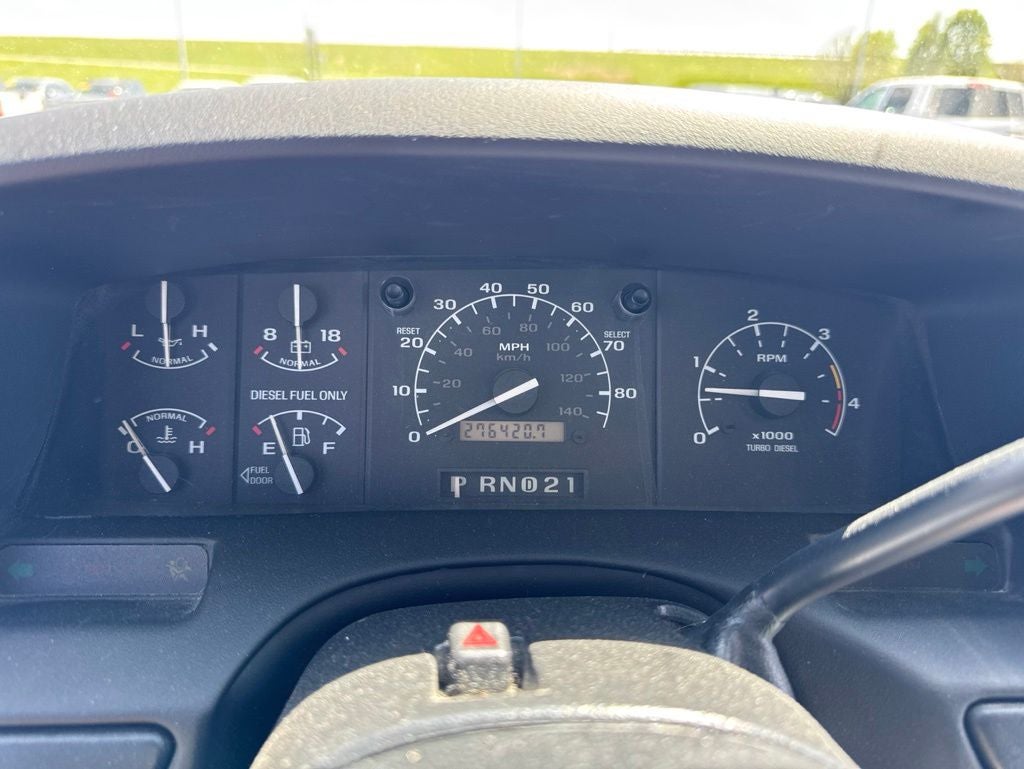

• Trip odometer, voltmeter, oil pressure/temp/fuel gauges w/indicator lights
• Inside hood release
• Vent windows

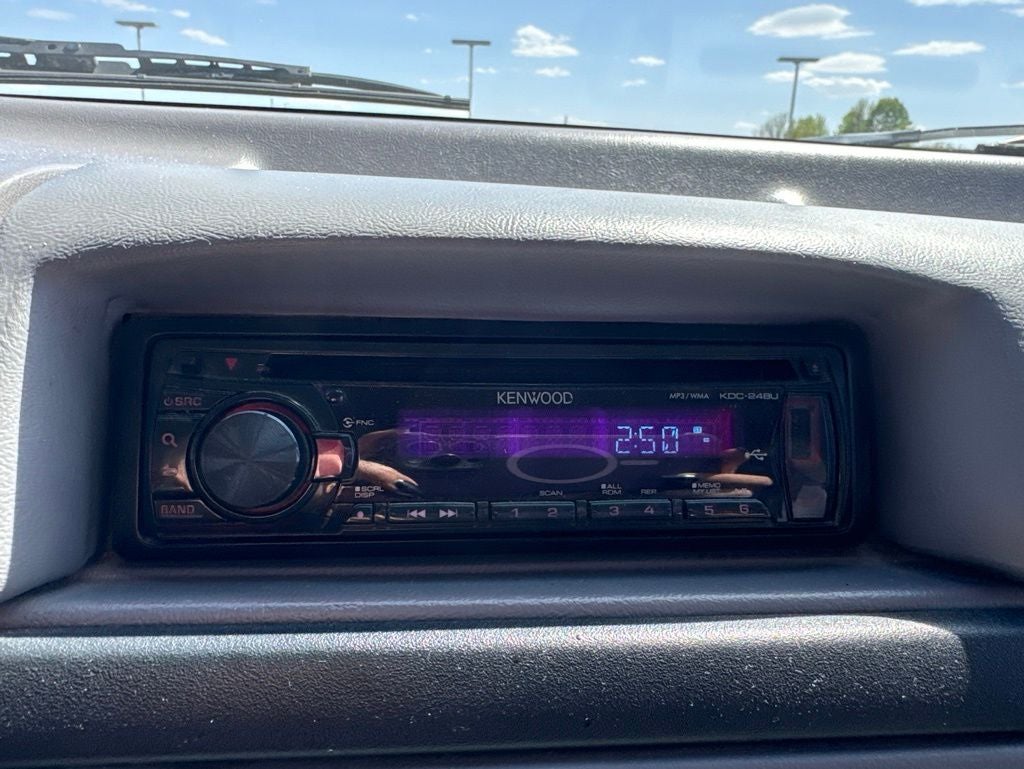

• Electronic AM radio w/digital clock, 2 speakers

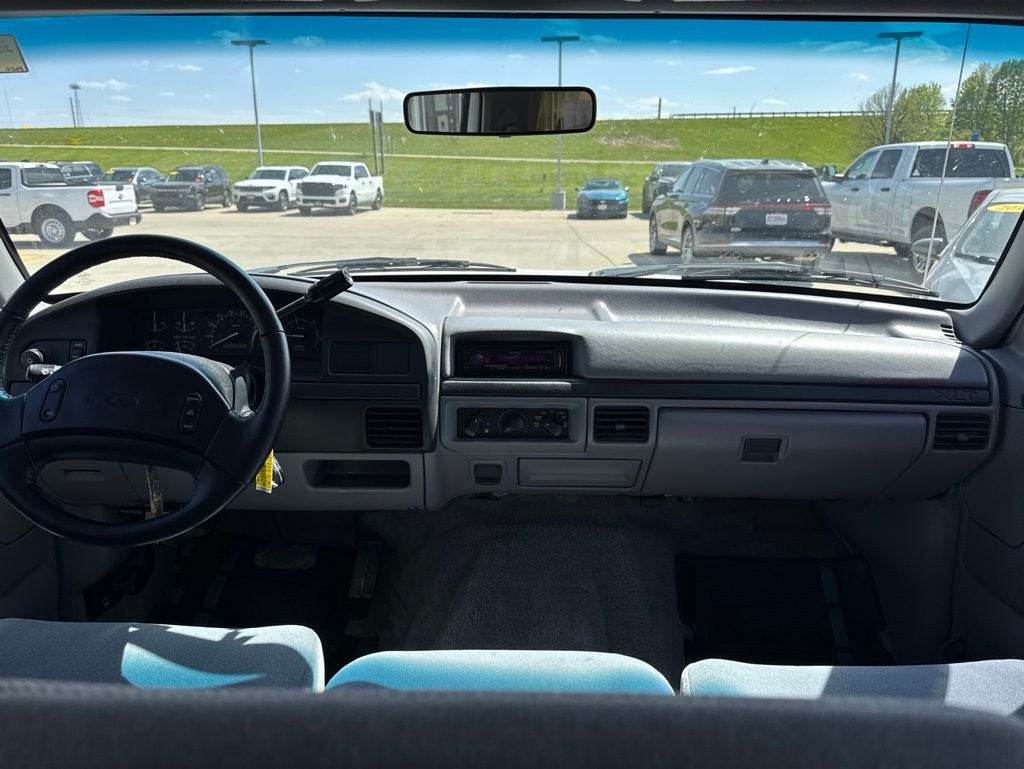

• Color-keyed instrument panel w/black appliques, side window demisters, four air registers, glove box

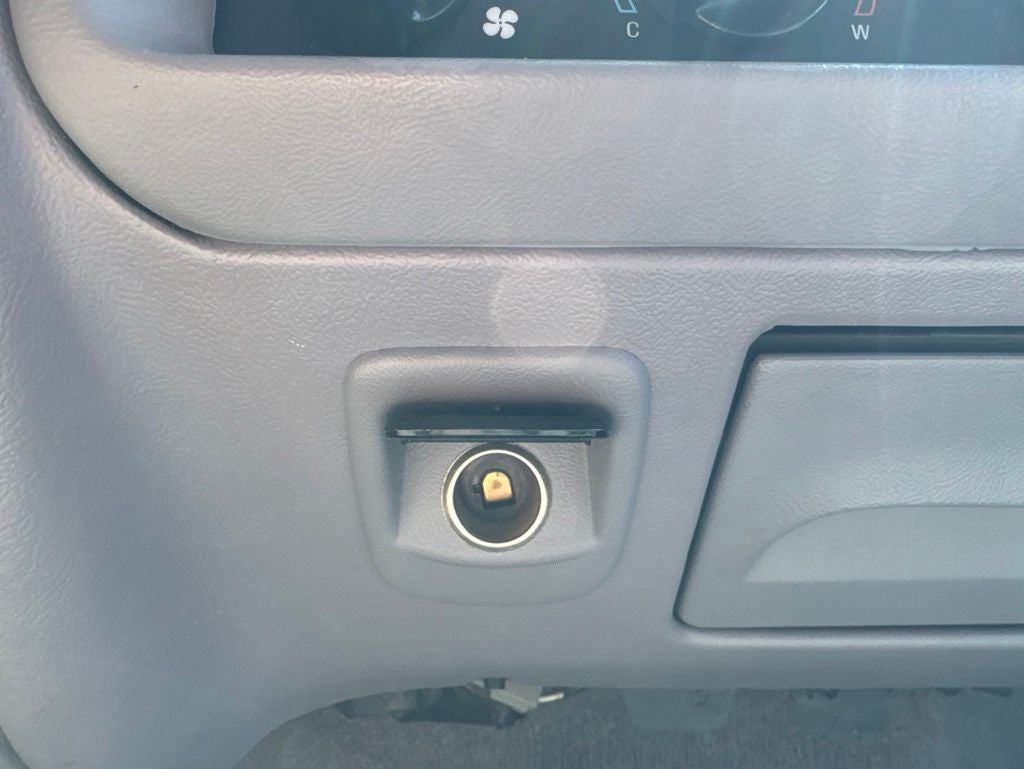

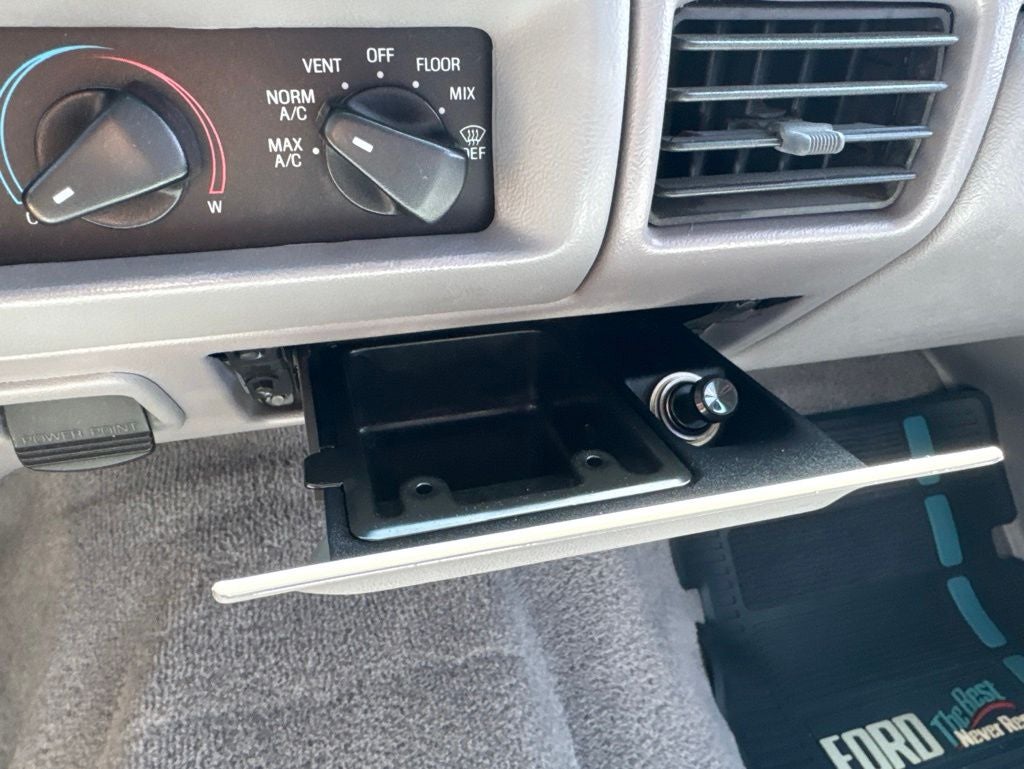

• Cigarette lighter
• Pwr point
• 12" day/night rearview mirror
• Color-keyed door trim panels w/black handles, reflector
• Color-keyed cloth headliner w/insulator
• Color-keyed vinyl sun visors w/LH retainer band
• Color-keyed RH coat hook
• Dome/glove box/ashtray lights
• Dual-door-operated courtesy light
• Carpeted back panel cover

• Rear-wheel anti-lock brake system
• Color-keyed safety belts
• Dual electric horns

7.3L (444) DI V8 TURBO-DIESEL ENGINE

• dual 78 amp-hour batteries
• 130 amp alt
• tachometer
• super engine cooling
• chrome slotted front bumper
• integral engine oil cooler
• vacuum pump
• sound reduction pkg
• diesel engine light cluster
• fuel filter/heater/water separator

• 3.55 Axle Ratio
• Payload Package # 1
• Color-Keyed Carpeting
• Chrome Appearance Package
• Floor Mat In Lieu Of Carpet
• Black Bodyside Moldings

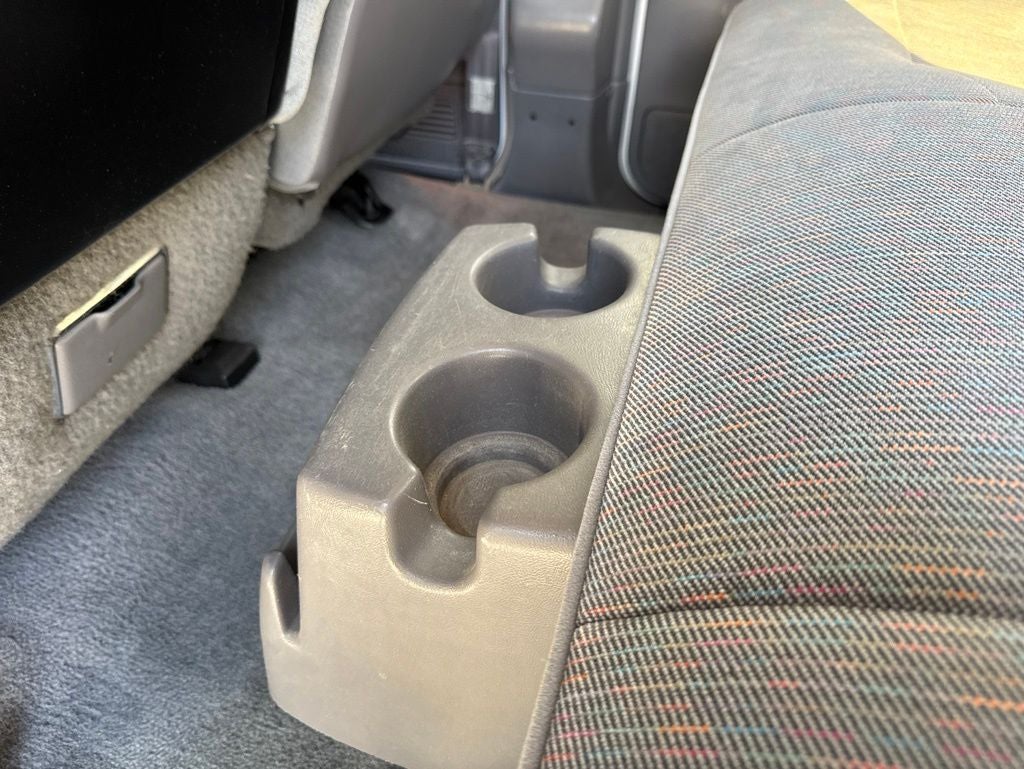

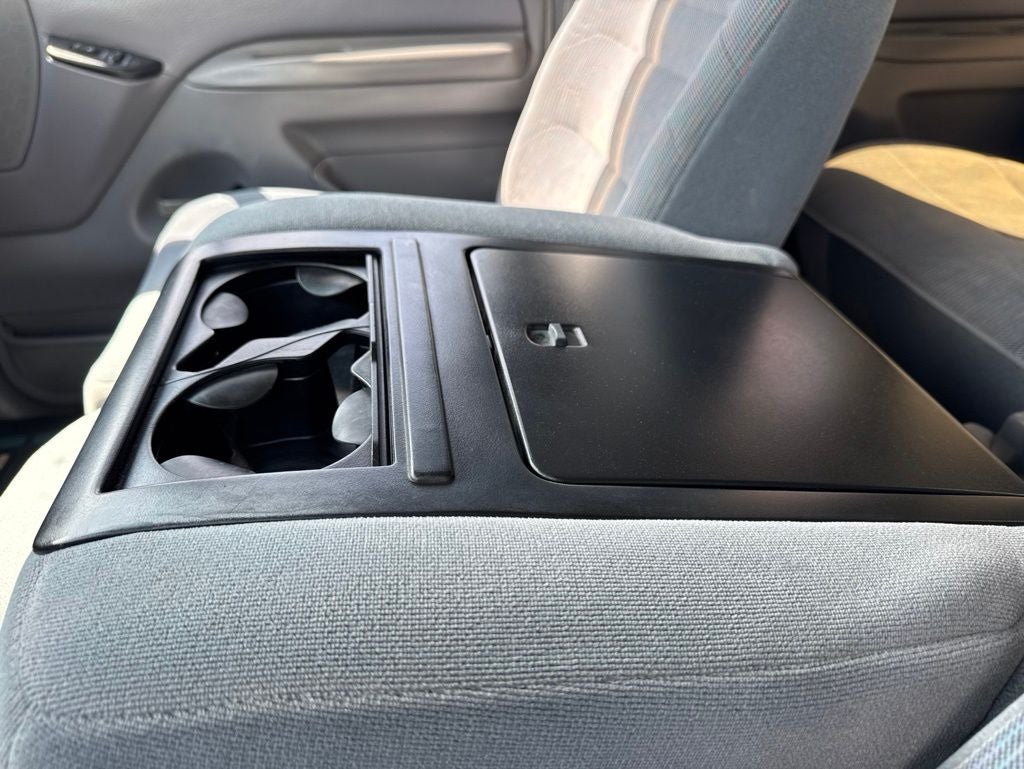

• Front beverage holders

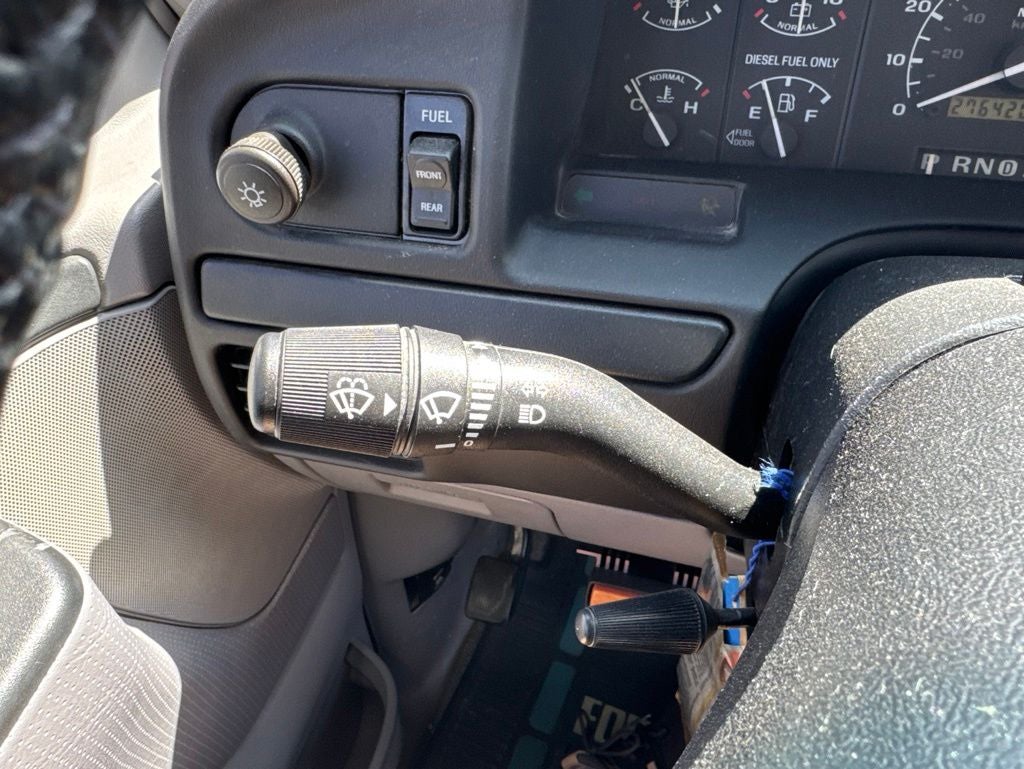

• Variably intermittent wipers
• Power steering
• Front wheel independent suspension
• Bumpers: chrome
• AM/FM radio
• ABS brakes
• Voltmeter

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 1500
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 1500
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Capacity (amps): 95
• Maximum Alternator Watts: 1950
• Maximum Alternator Watts: 1425
• Cooling System
• Total Cooling System Capacity (qts): 22
• Total Cooling System Capacity (qts): 18
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3765
• Gross Axle Wt Rating - Front (lbs): 3140
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3008
• Curb Weight - Rear (lbs): 2278
• Gross Vehicle Weight Rating Cap (lbs): 8800
• Gross Combined Wt Rating (lbs): 16,000
• Gross Combined Wt Rating (lbs): 12,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 2000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: 2-Stage Mutli-Leaf
• Spring Capacity - Front (lbs): 3765
• Spring Capacity - Front (lbs): 3140
• Spring Capacity - Rear (lbs): 6141
• Axle Type - Front: Twin I-Beam
• Axle Type - Rear: Ford Full-Floating
• Axle Capacity - Front (lbs): 4200
• Axle Capacity - Rear (lbs): 6250
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Brakes
• Brake Type: Power
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.03 x - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 12 x 3.0
• Tires
• Front Tire Order Code: T35
• Rear Tire Order Code: T35
• Front Tire Size: LT235/85R16E
• Rear Tire Size: LT235/85R16E
• Front Tire Capacity (lbs): 3042
• Rear Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: 654
• Revolutions/Mile @ 45 mph - Rear: 654
• Wheels
• Front Wheel Size (in): 16.0 x 7.0
• Rear Wheel Size (in): 16.0 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 17.0
• Turning Diameter - Curb to Curb (ft): 51.01
• Turning Diameter - Wall to Wall (ft): 53.14
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 18.2

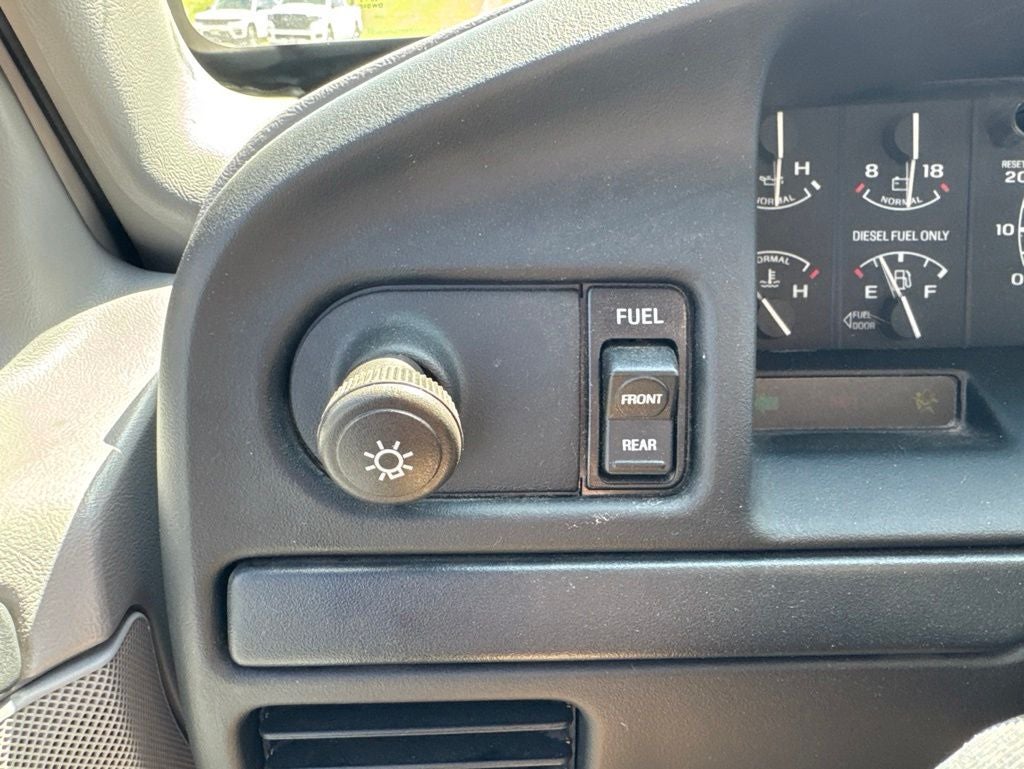

• Aux Fuel Tank Capacity, Approx (gal): 19.0
• Fuel Tank Location: Aft-of-axle
• Aux Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 152.2
• Length, Overall w/o rear bumper (in): 232.5
• Width, Max w/o mirrors (in): 79.0
• Height, Overall (in): 73.4
• Overhang, Front (in): 33.5
• Overhang, Rear w/o bumper (in): 46.8
• Front Bumper to Back of Cab (in): 145.8
• Cab to Axle (in): 56.2
• Cab to End of Frame (in): 80.4
• Ground to Top of Load Floor (in): 32.0
• Frame Width, Rear (in): 37.7

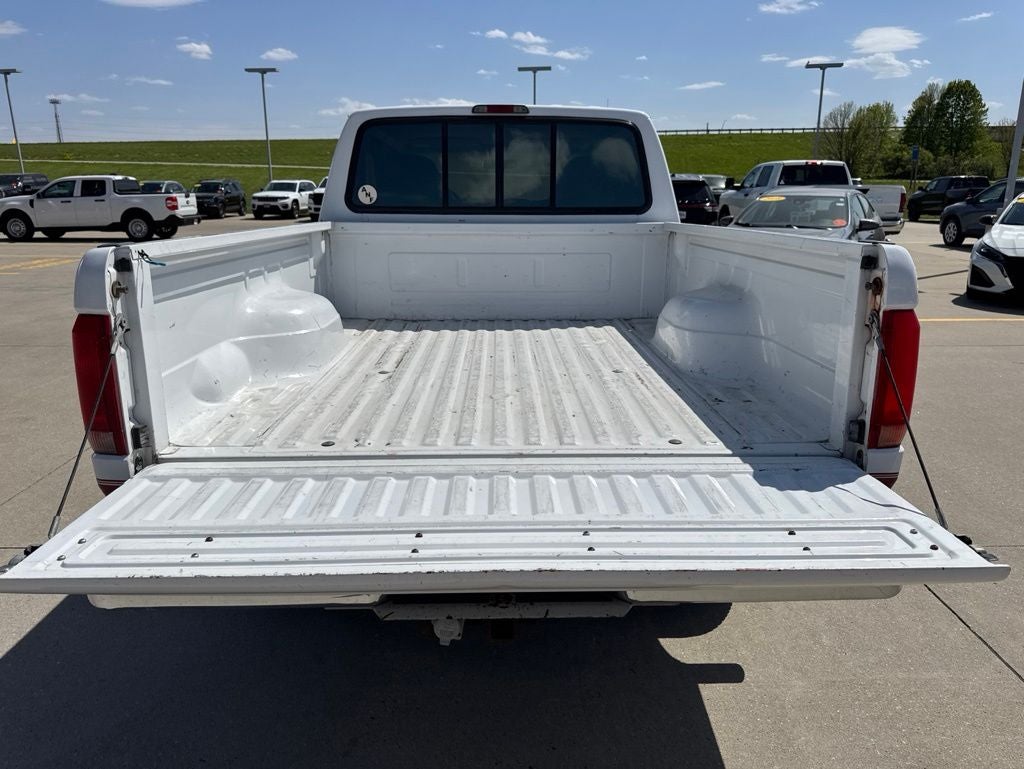

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.0
• Cargo Box Width @ Top, Rear (in): 64.9
• Cargo Box Width @ Floor (in): 70.0
• Cargo Box Width @ Wheelhousings (in): 50.8
• Cargo Box (Area) Height (in): 19.3
• Tailgate Width (in): 64.9
• Cargo Volume (ft³): 62.9
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 64.8
• Front Hip Room (in): 62.2
• Second Head Room (in): 39.6
• Second Leg Room (in): 37.9
• Second Shoulder Room (in): 64.8
• Second Hip Room (in): 62.2
• Summary

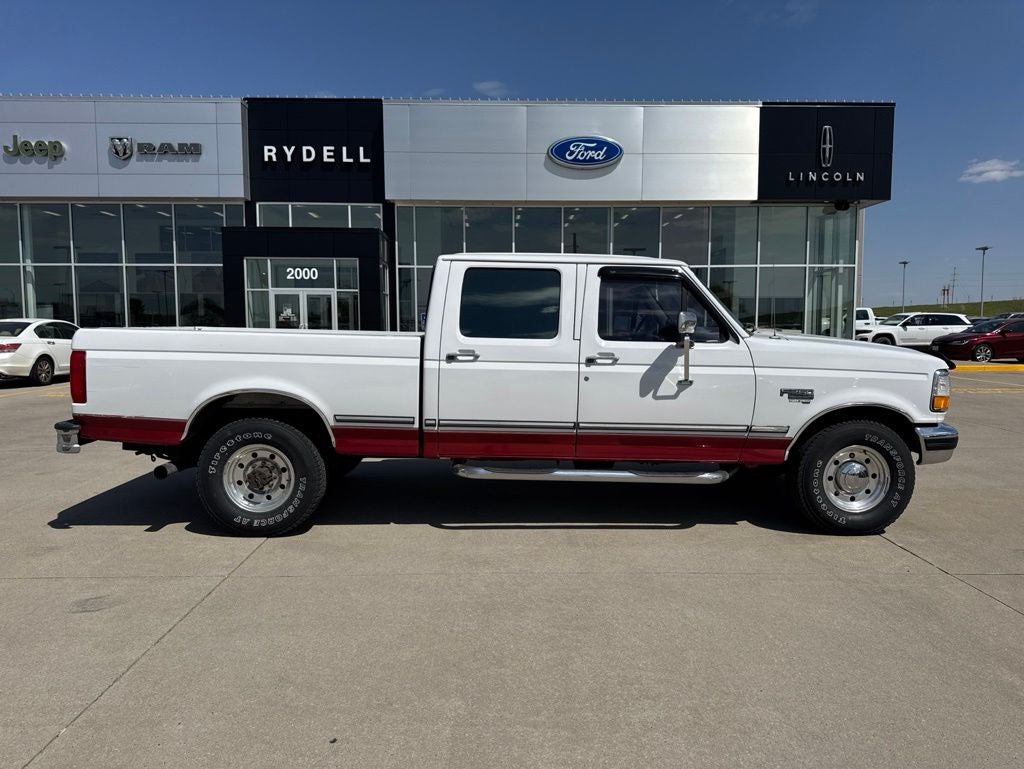

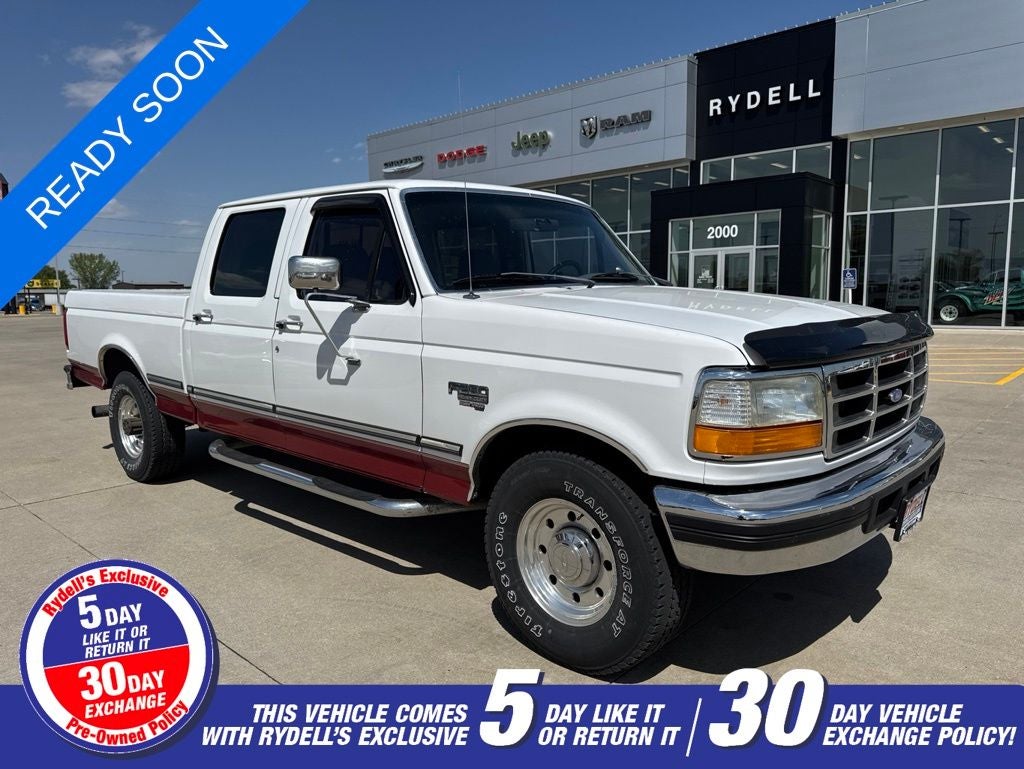

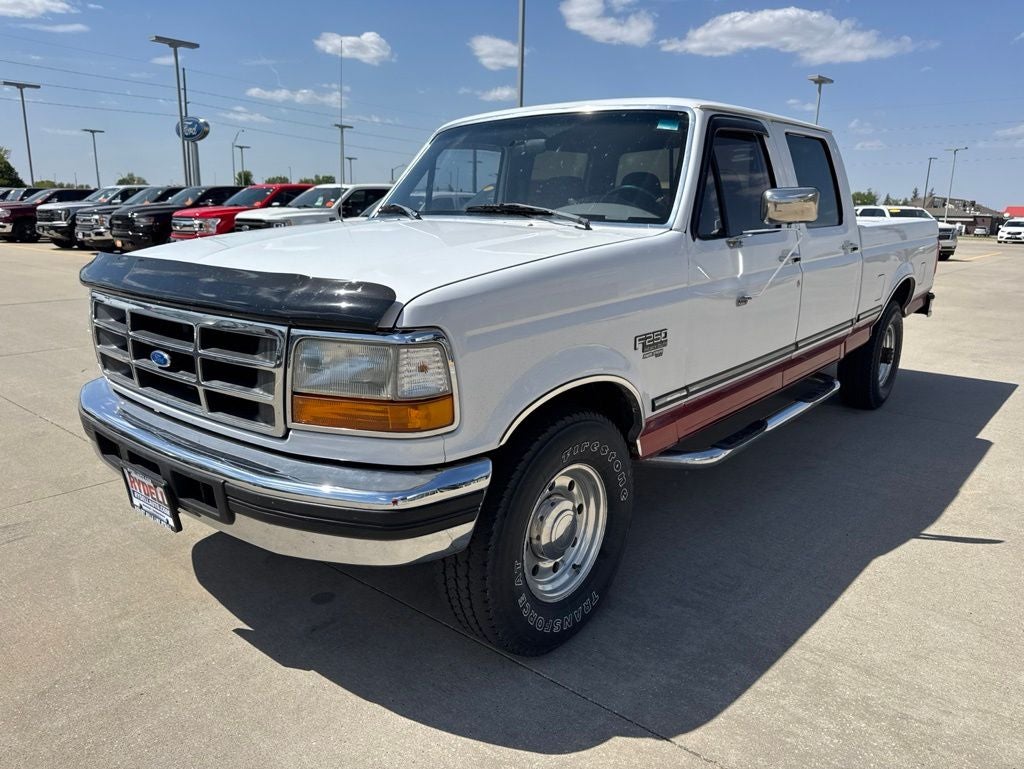

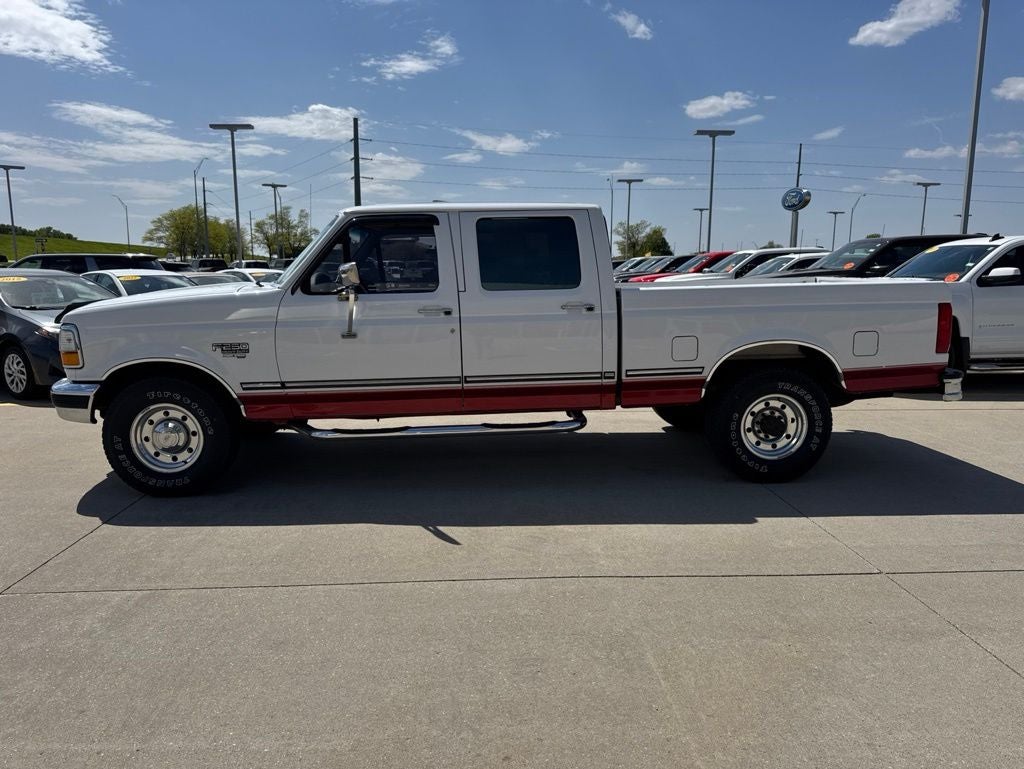

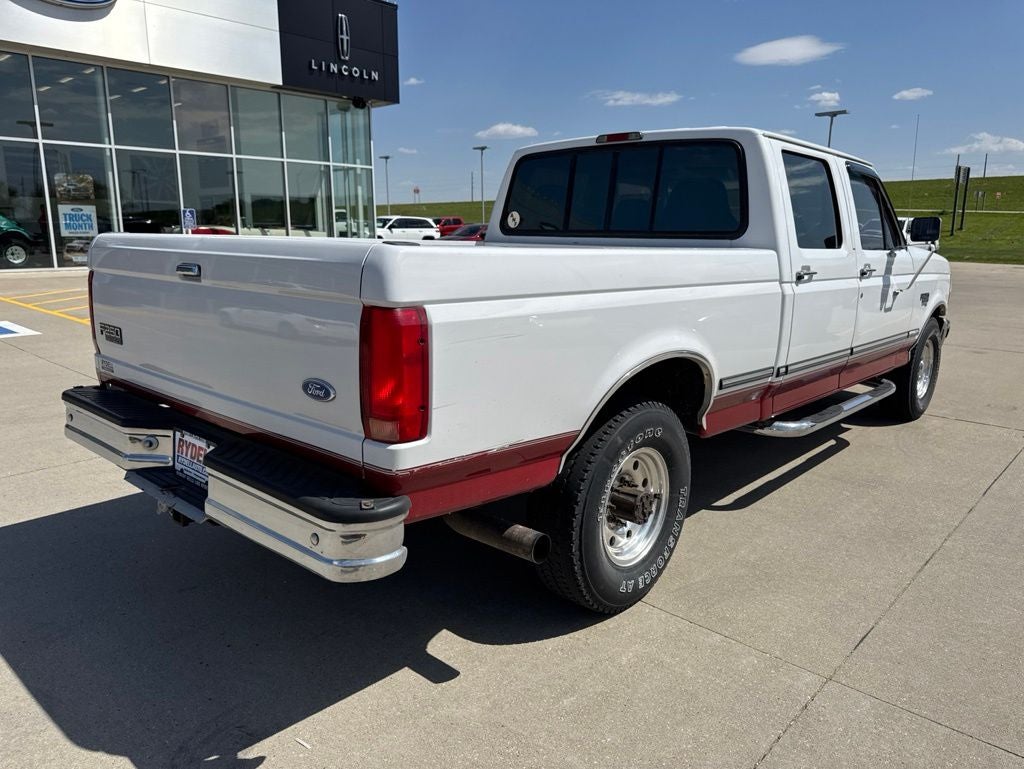

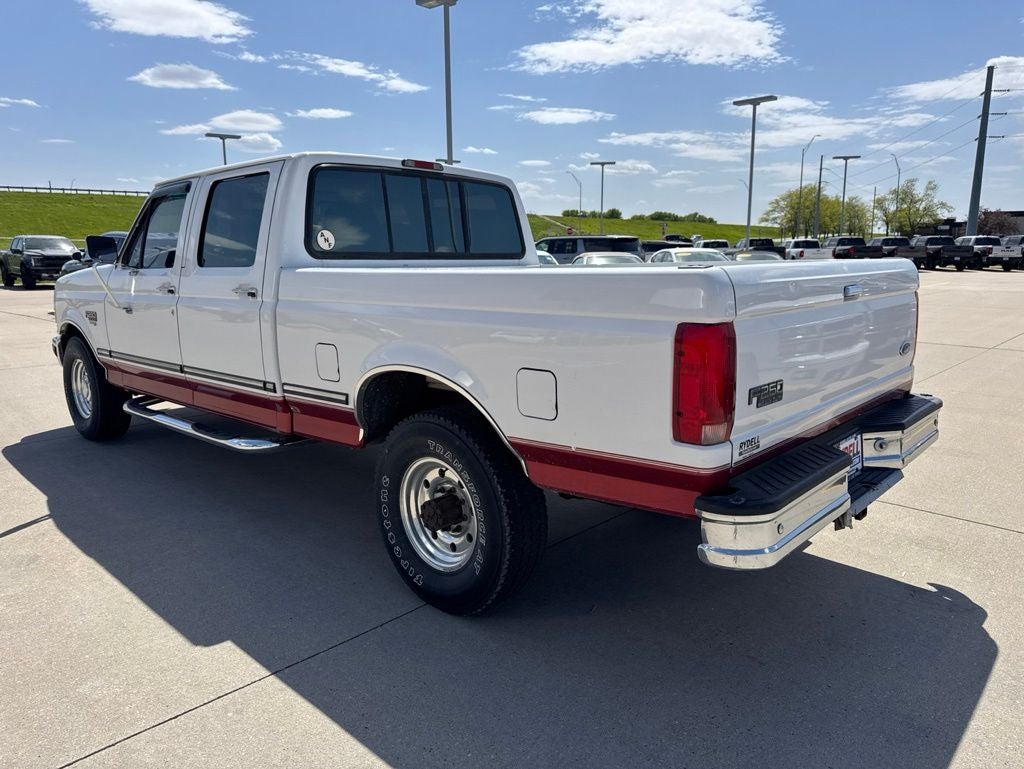

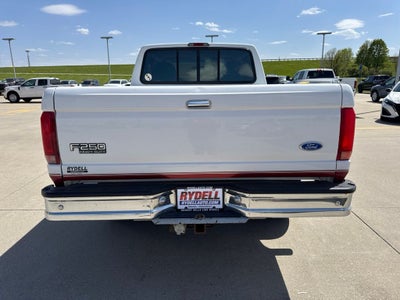

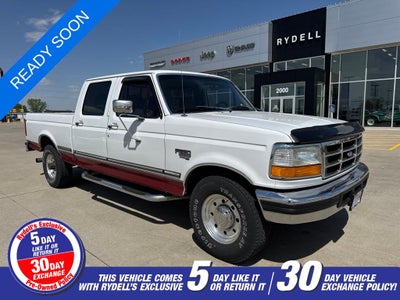

• Vehicle Name: Ford F-250 HD Crew Cab
• Body Style: 4 Door 6.75' Styleside
• Body Code: 152.2" WB
